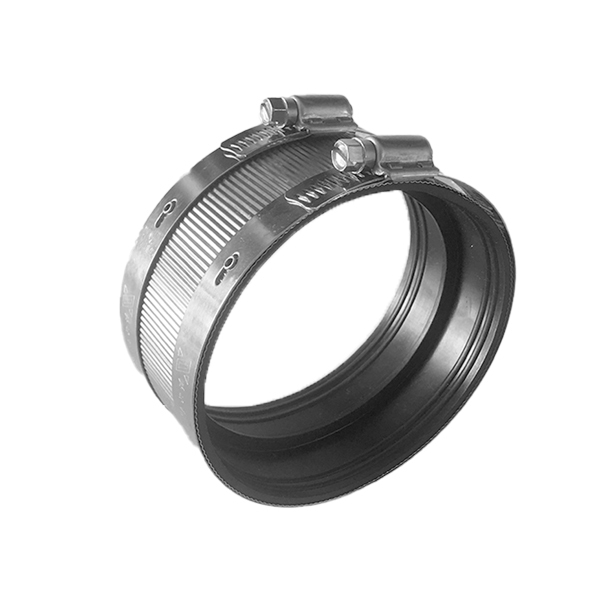

| Pipe Size | 1-1/2” | 2” | 3” | 4” | 5” | 6” | 8” | 10” | 12” | 15” | |
| Dimensions in. | Min. | 1.50 | 2.00 | 3.00 | 4.00 | 5.30 | 6.30 | 8.30 | 10.45 | 12.53 | 15.75 |
| Max. | 2.50 | 3.00 | 4.00 | 5.00 | 6.20 | 7.20 | 9.20 | 11.35 | 13.27 | 16.49 |
| Pipe Size | 1-1/2” thru 4” | 5” thru 10” | 12” thru 15” |
| Clamp Band | 9/16” | 9/16” | 9/16” |
| Hex Head Screw | 5/16” | ||
| No. of Clamps Included | 2 | 4 | 6 |
| Coupling Width | 2.215” | 5”&6”=3.000” 8”&10”=4.000” |
5.500” |
| Shield Color | None | ||
| Bi-Directional Shield | Unidirectional | ||
| Beaded Gasket | √ | ||
| Floating Eyelets | √ | ||
| Interlocked Housing Design | √ | ||
| Shield Material | 301 SS | ||
| Band Material | 301 SS | ||
| Housing Material | 301 SS | ||
| Screw Material | 301 SS | ||
| Eyelet Material | 301 SS | ||
| Gasket Material | ASTM C564 Compliant | ||
| Installation Torque | 60 in-lbs | ||
| Ultimate Torques | 75 in-lb | ||
| CISPI 310 Compliant | √ | ||
| ASTM C1277 Compliant | √ | ||
